Winch 700m 4 core

• Price: Price on application

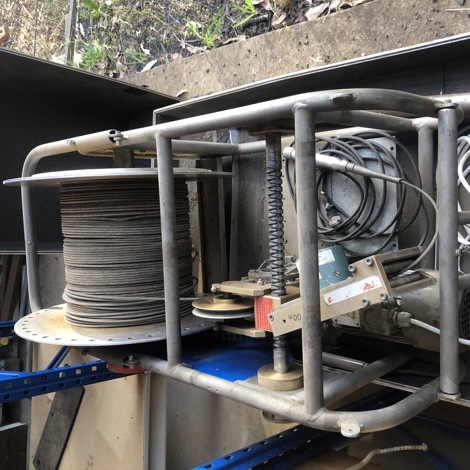

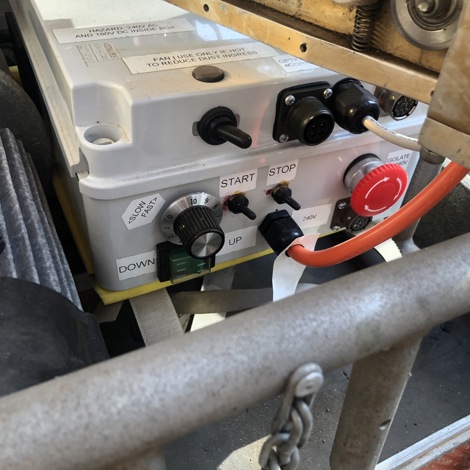

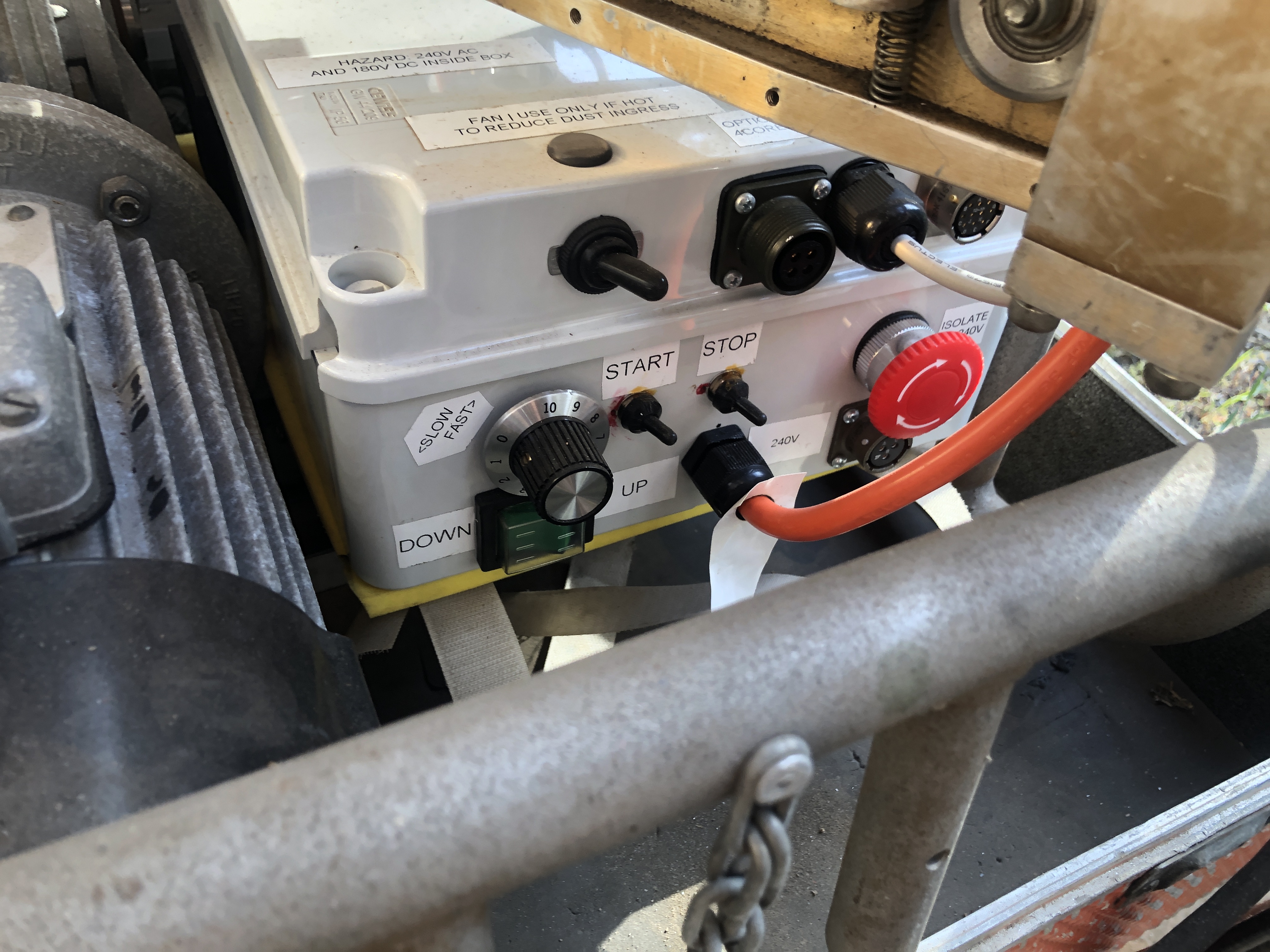

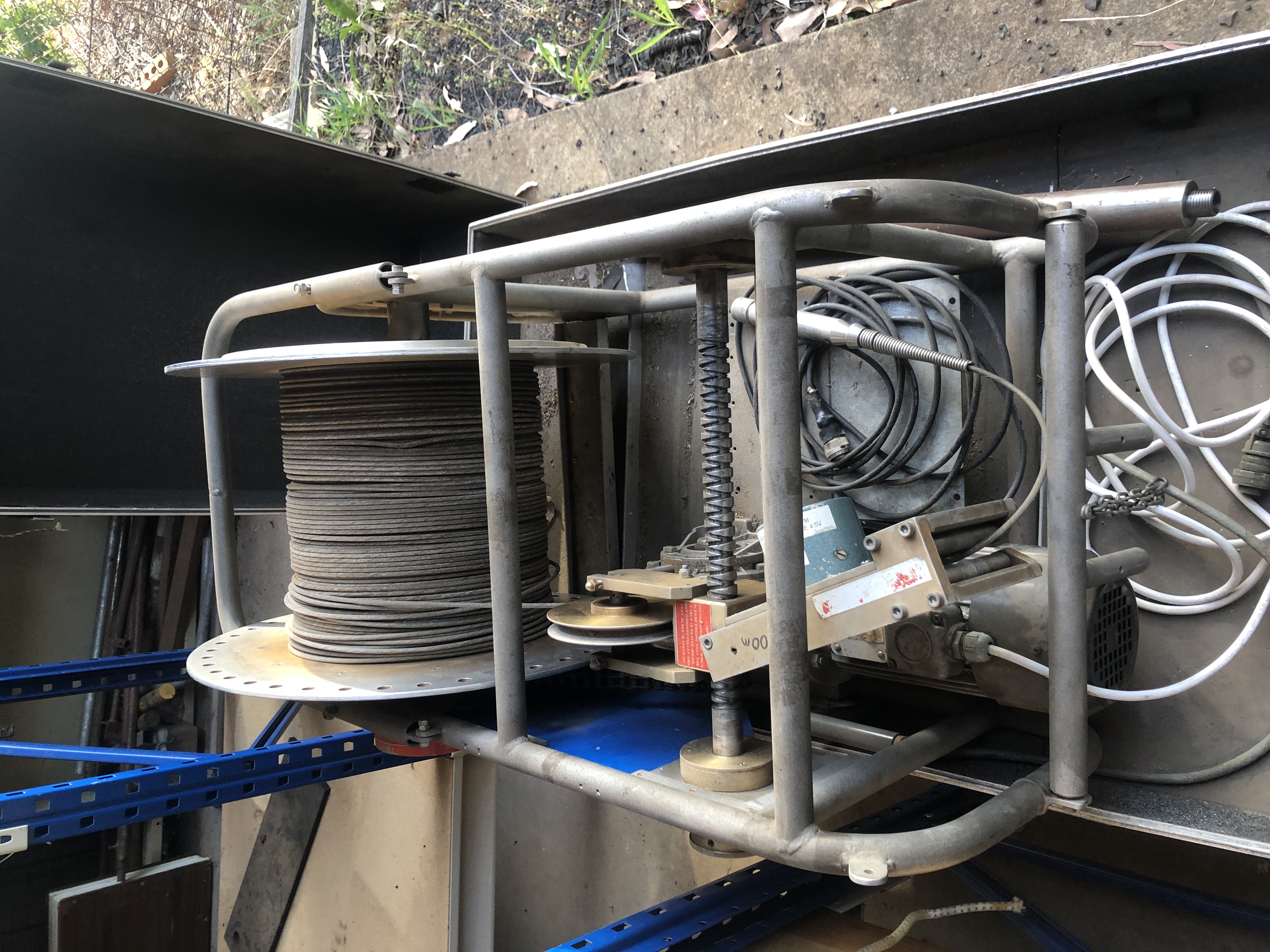

The two Pluto winches appear to be able to hold and operate 1500m of 4 core cable. One is equipped with 700m of steel strand shielded 4-core cable and cable head. Each has a 160V DC motor and 240V AC controller (see ‘Winch Controllers’). The Winches are very compact, have Aluminium shipping boxes, detachable hand cranks, transport brakes (in addition to the 4 quadrant motor braking), and working tested levelwind mechanisms with clutches for hand-correction. Counters are integrated into the levelwind pulleys and integrated with motor operation for constant speed control.

 The 700m winch was used by Fugro Ground Geophysics for some years after purchase from CSIR before FGG was dissolved. It has not seen a lot of service and therefore is in near new condition.
