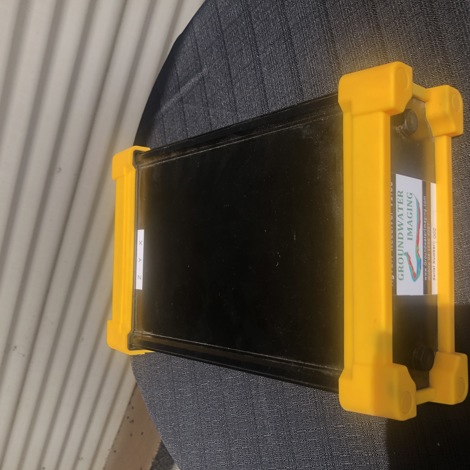

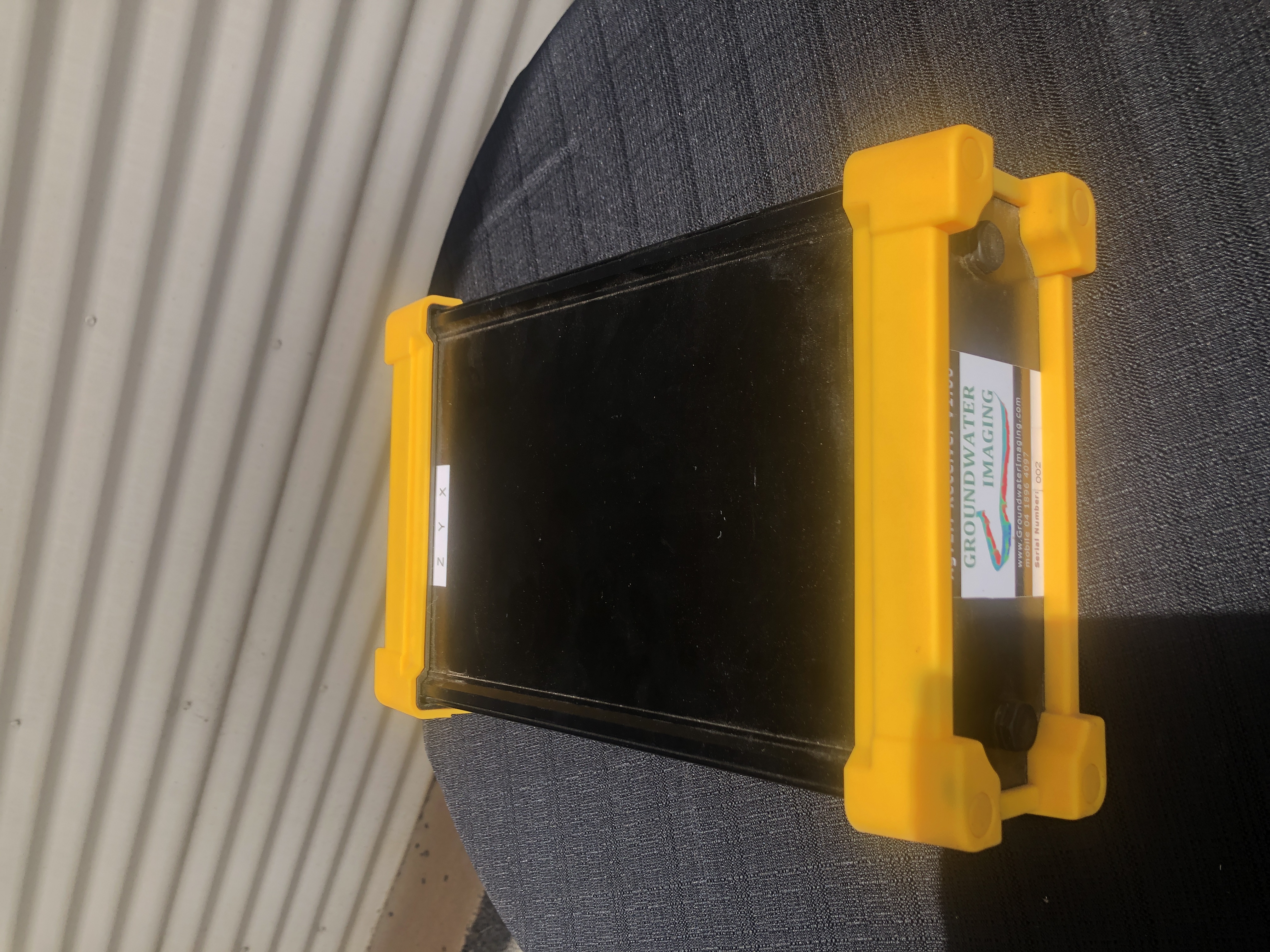

AgTEM receiver

• Price: Price on application

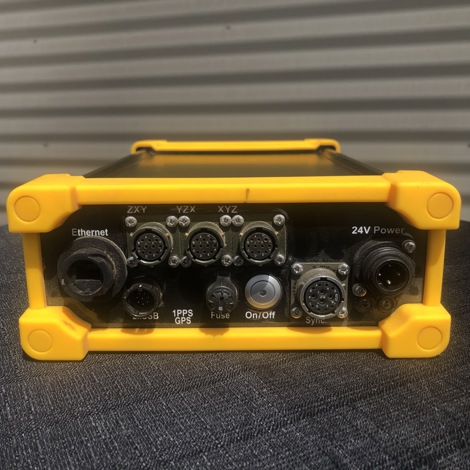

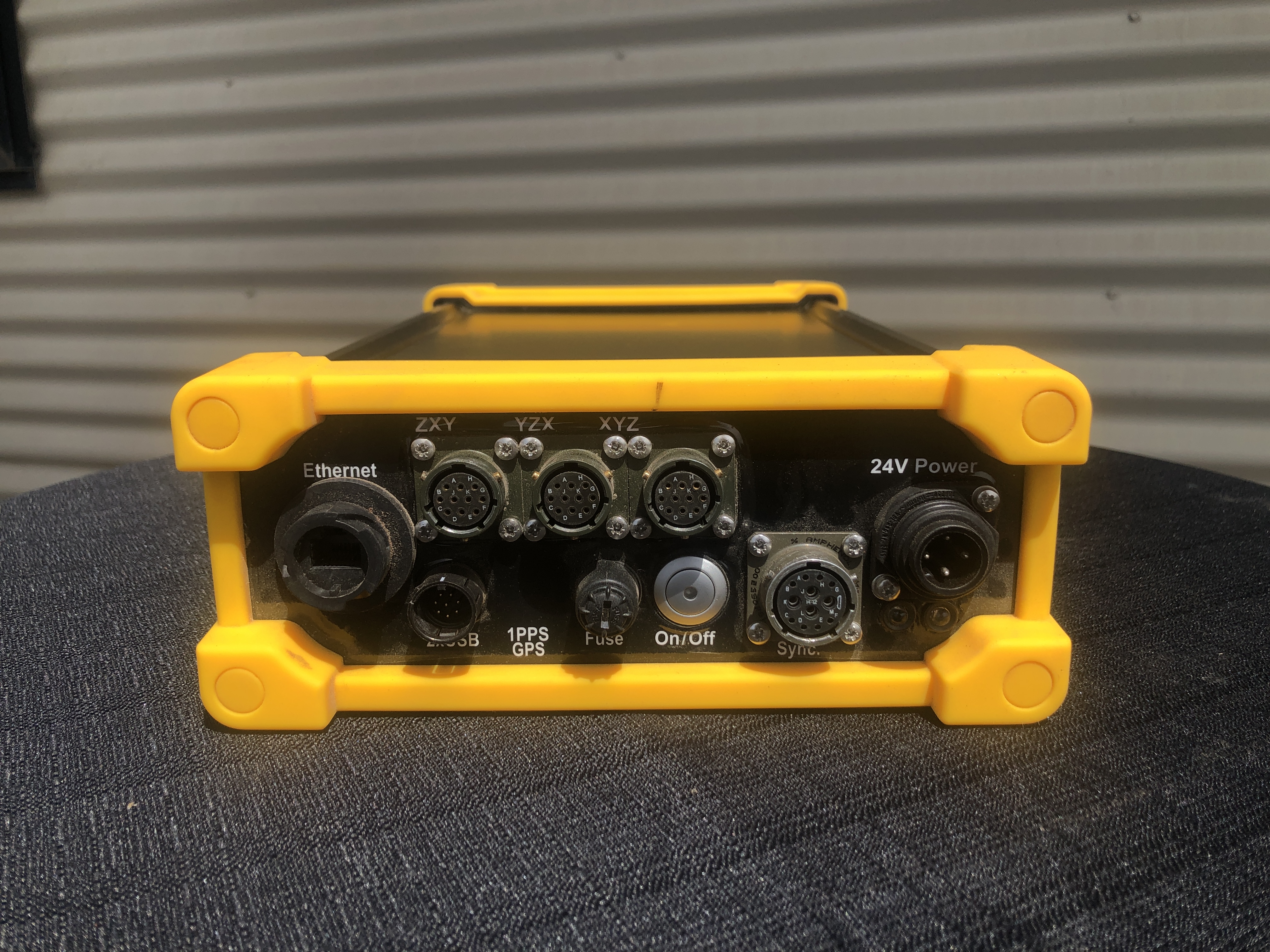

The AgTEM receiver is a 24bit system with input overvoltage protection and three independent signal conditioning paths and A/D converters that act simultaneously at up to 625kHz but typically at 156.25kHz. Receiver loops can be connected all to one connector or, with the same cable design, to three separate ports with components rotated around so they do not conflict. Power required is 24V without huge voltage spikes – this is supplied from a filtered supply on the transmitter or direct from dedicated batteries. The same power cable extends to the computer/touchscreen that must be used with the receiver. There are also synchronization and USB/ethernet cables required.
