AgTEM transmitter

• Price: Price on application

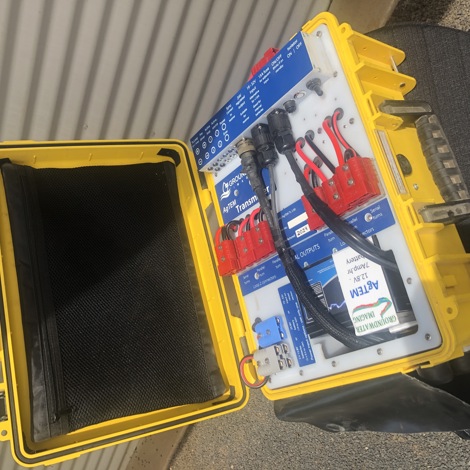

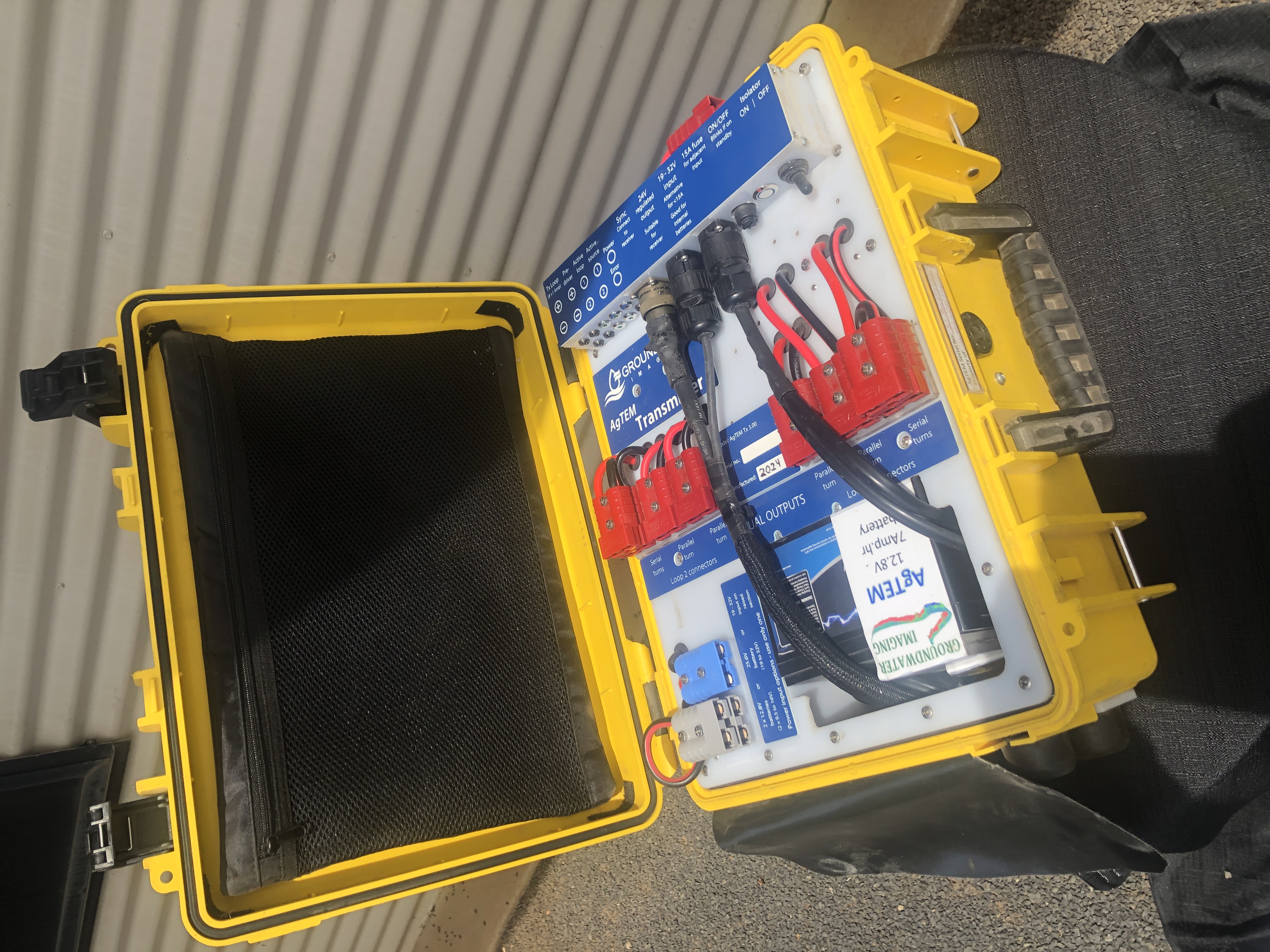

The AgTEM transmitter connects to the receiver via a Synchronization cable, and optionally with a power sharing cable so 19 to 26V transmitter batteries can power the transmitter loop source, transmitter electronics, receiver electronics and the computer/touchscreen. The transmitter clicks onto a backpack frame or other mounts.

Output voltage is 3.3 to 18V at up to 45 Amps. Ramp avalanche is 200V and a bank of selectable internal resistors provides loop damping.

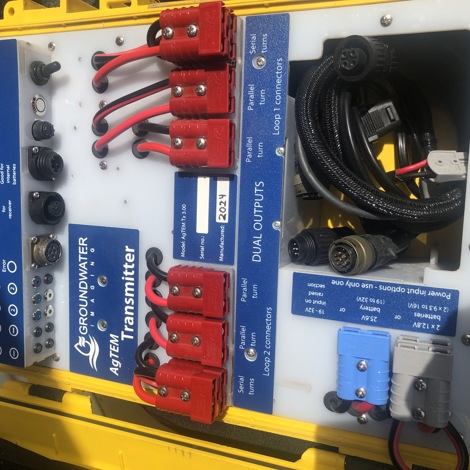

Many options for both input and output power connection are supplied via banks of Anderson connectors as they are more practical than switches for high current.
